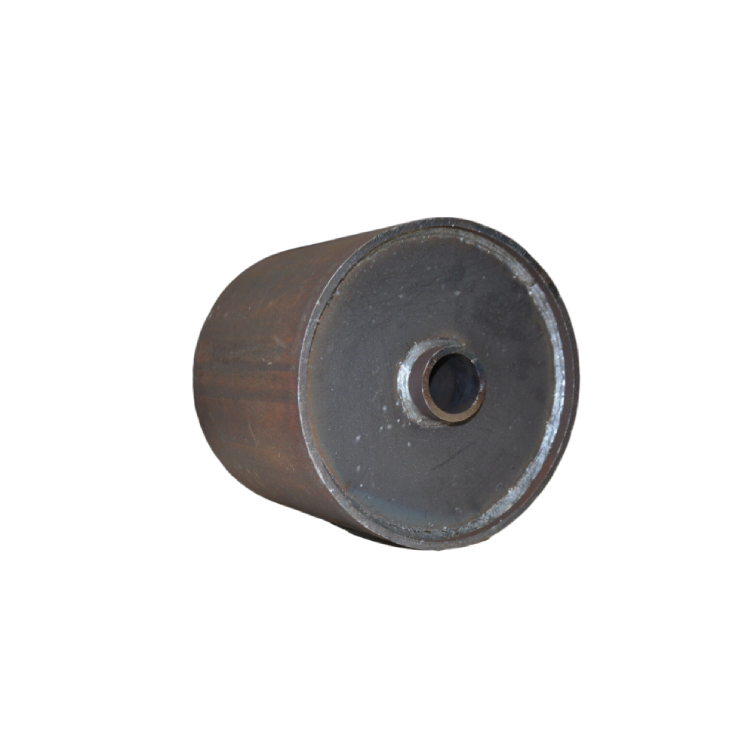

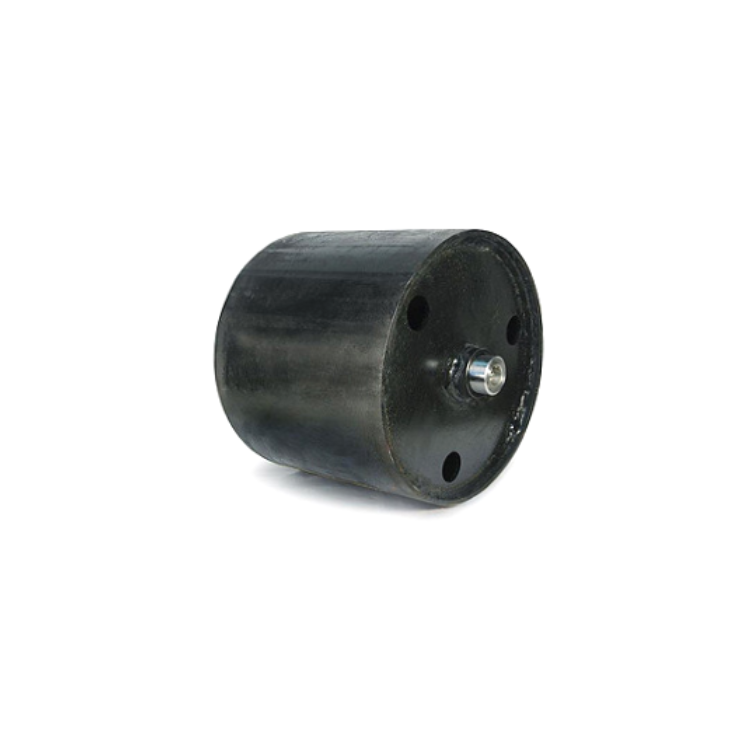

(1) Name of Commodity: Ground Roller/Bogey Wheel.

(2) Size: See Table, other sizes are available.

(3) Material: Steel pipe.

(4) Capacity: 10,000sets/Month.

(5) Packing: Usually 40/50pcs each in palletized plywood cases reinforced with steel bars.

(6) Lead time: Depending on the order volume and the inventory.

(7) Detailed Specifications (Units: Inch, lb)



Item No.

Roller Φ

Roller Length

Roller Wt.

Axle Φ

Axle Length

Axle Wt.

BR6X12

6

12

37

1.5

15

7.5

BR8X10

8 5/8

10

34

1.5

12  1/2

5.25

BR8X8

8  5/8

8

36

1.5

10  1/2

5.7

BR10X8

10  3/4

8

44.5

1.5

10  1/2

5.25

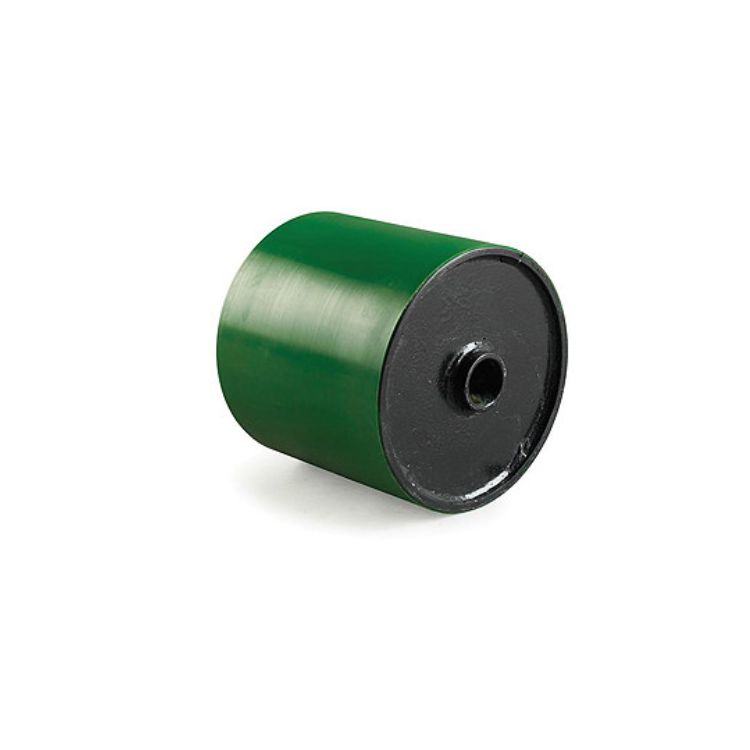

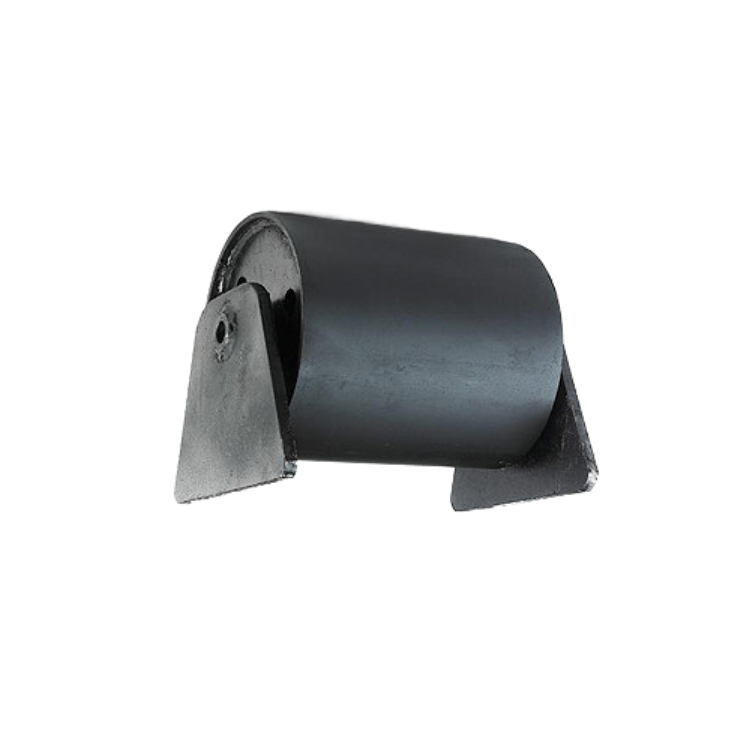

Fig.1: General Diagram of Ground Roller





Fig.2: Standard Packing (L960XW900XH960mm, about 800Kgs)
