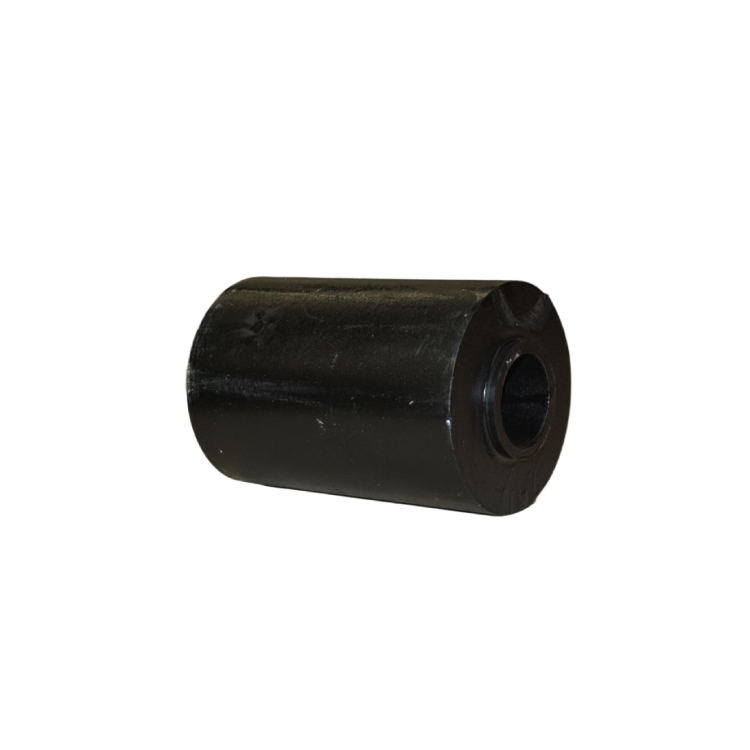

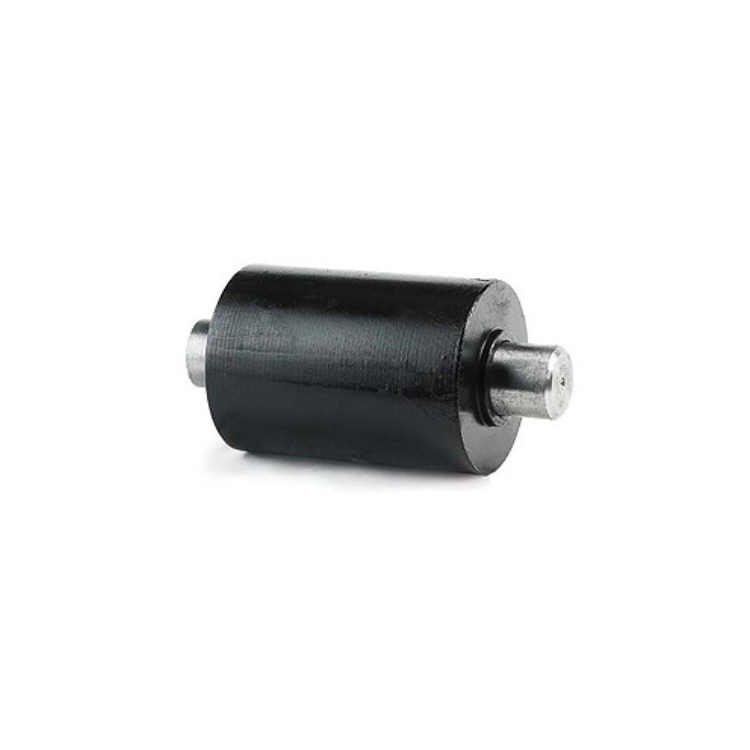

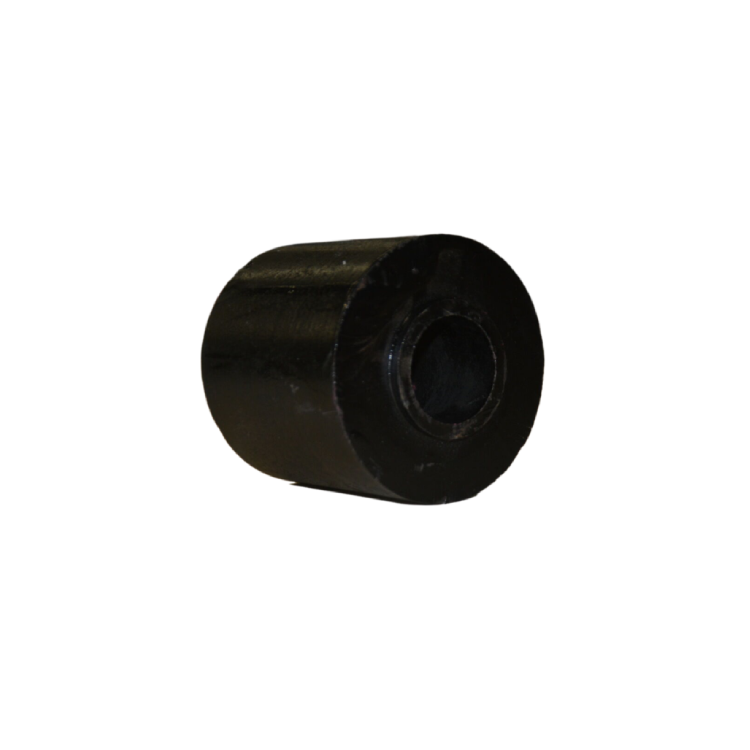

(1) Name of Commodity: Nose Roller.
(2) Size: See Table, other sizes are available.
(3) Material: Cast Semi-steel/Steel.
(4) Capacity: 10,000sets/Month.
(5) Packing: In palletized plywood cases reinforced with steel bars.
(6) Lead time: Depending on the order volume and the inventory.
(7) Detailed Specifications (Units: Inch, lb)
|
Roller Φ |
Roller Length |
Roller Wt. |
Axle Φ |
Axle Length |
Axle Wt. |
Load Capacity |
Roller+Axle |
|
4 |
4 |
16.5 |
1.5 |
6.50 |
3.25 |
40,000 |
NR4X4 |
|
4 |
4.5 |
18.25 |
1.5 |
7.50 |
3.75 |
40,000 |
NR4X4.5 |
|
4 |
6 |
21.25 |
1.5 |
8.25 |
4.125 |
40,000 |
NR4X6 |
Fig.1: General Diagram of Nose Roller
Fig.2: Standard Packing (The size is decided by the product type)
